Example: 1D Transverse Field Ising Model

Defining the Hamiltonian

The transverse field Ising model is a quantum spin model that exhibits a quantum phase transition. The Hamiltonian for the model is given by:

\[H = -J \sum_i^L \sigma_i^z \sigma_{i+1}^z - h \sum^L_i \sigma_i^x\]

where:

• $L$ is the number of spins.
• $J$ is the interaction strength between neighboring spins.
• $h$ is the transverse field strength.
• $\sigma^z$ and $\sigma^x$ are Pauli matrices.

At the critical point $h=1$, the energy for open boundary conditions is given by:

\[E_{crit} = 1 - \cosec \left(\frac{\pi}{2(2L+1)}\right)\]

Below is an example of how to simulate the transverse field Ising model using GreenFunctionMonteCarlo.jl:

First, we implement our Hamiltonian. Since our problem is equivalent to a hardcore boson problem, we represent our spin configurations by Booleans for optimal performance.

using GreenFunctionMonteCarlo

σz(n::Bool) = (1 - 2 * n)
σz(i, conf::AbstractArray) = σz(conf[i])

function transverse_field_ising(Nsites, h, J; periodic = false)
    Hilbert = BosonHilbertSpace(Nsites, HardCoreConstraint())

    moves = [Bool[0 for _ in 1:Nsites] for _ in 1:Nsites]
    offdiagElements = zeros(Float64, Nsites)

    for i in eachindex(moves)
        moves[i][i] = true
        offdiagElements[i] = -h
    end

    function Hxx(conf)
        E = -J * sum(σz(i, conf) * σz(i + 1, conf) for i in eachindex(conf)[1:end-1])
        if periodic
            E += -J * σz(Nsites, conf) * σz(1, conf)
        end
        return E
    end

    H = localOperator(moves, offdiagElements, DiagOperator(Hxx), Hilbert)
    return (; Hilbert, H)
end

# Define parameters
J = 1.0       # Interaction strength
h = 1.0       # Transverse field strength
lattice_size = 4  # Number of spins
periodic = false  # No periodic boundary conditions
# Define the Hamiltonian
(;Hilbert,H) = transverse_field_ising(lattice_size, h, J; periodic)

(Hilbert = BosonHilbertSpace{HardCoreConstraint}(4, HardCoreConstraint()), H = LocalOperator{GreenFunctionMonteCarlo.FlipMove{StaticArraysCore.SVector{1, Int64}}, Float64, DiagOperator{Main.var"#Hxx#5"{Bool, Int64, Float64}}}(GreenFunctionMonteCarlo.FlipMove{StaticArraysCore.SVector{1, Int64}}[GreenFunctionMonteCarlo.FlipMove{StaticArraysCore.SVector{1, Int64}}([1]), GreenFunctionMonteCarlo.FlipMove{StaticArraysCore.SVector{1, Int64}}([2]), GreenFunctionMonteCarlo.FlipMove{StaticArraysCore.SVector{1, Int64}}([3]), GreenFunctionMonteCarlo.FlipMove{StaticArraysCore.SVector{1, Int64}}([4])], [-1.0, -1.0, -1.0, -1.0], DiagOperator{Main.var"#Hxx#5"{Bool, Int64, Float64}}(Main.var"#Hxx#5"{Bool, Int64, Float64}(false, 4, 1.0))))

The Hamiltonian is split into a diagonal and an offdiagonal part. The diagonal $H_{xx}$ can be an arbitray function of the configuration $x$. The offdiagonal is given by the moves and offdiagElements arrays. The moves array contains the indices of the spins that are flipped, while the offdiagElements array contains the corresponding weights for each move.

Running the Simulation

We now proceed to solve the Hamiltonian. It is instructive to consider a single walker first. As a guiding wavefunction, we use the simplest one, an equal weight superposition of all configurations $\psi(x) =1$.

NSteps = 500  # Number of Monte Carlo steps
NStepsEquil = 30  # Number of Monte Carlo steps for equilibration
NWalkers = 1  # Number of walkers
dtau = 0.1    # imaginary time propagation step

startConfig = BosonConfig(Hilbert) # creates an initial configuration where all occupation numbers are 0

problem = GFMCProblem(startConfig, NWalkers, ContinuousTimePropagator(dtau); logψ = EqualWeightSuperposition(), H, Hilbert)
Observer = ConfigObserver(startConfig, NSteps, NWalkers) # Observer to measure the energy and configurations
runGFMC!(problem, NoObserver(), NStepsEquil) #run for NStepsEquil steps without observing to equilibrate
runGFMC!(problem, Observer, NSteps) #run for NSteps steps

GreenFunctionMonteCarlo.CombinedObserver{@NamedTuple{BasicObserver::BasicObserver{Float64}, ConfigurationObserver::ConfigurationObserver{Array{Bool, 3}}}}((BasicObserver = BasicObserver{Float64}([-2.9999999999999996, -2.9999999999999996, -2.9999999999999996, -2.9999999999999996, -2.9999999999999996, -2.9999999999999996, -2.9999999999999996, -2.9999999999999996, -2.9999999999999996, -2.9999999999999996  …  -7.0, -7.0, -7.0, -7.0, -7.0, -7.0, -3.0, -2.9999999999999996, -2.9999999999999996, -2.9999999999999996], [1.3498588075760032, 1.3498588075760032, 1.3498588075760032, 1.3498588075760032, 1.3498588075760032, 1.3498588075760032, 1.3498588075760032, 1.3498588075760032, 1.3498588075760032, 1.3498588075760032  …  2.0137527074704766, 2.0137527074704766, 2.0137527074704766, 2.0137527074704766, 2.0137527074704766, 2.0137527074704766, 1.9942056088038929, 1.3498588075760032, 1.3498588075760032, 1.3498588075760032], [1 1 … 1 1]), ConfigurationObserver = ConfigurationObserver{Array{Bool, 3}}(Bool[1; 1; 0; 1;;; 1; 1; 0; 1;;; 1; 1; 0; 1;;; … ;;; 1; 0; 0; 1;;; 1; 0; 0; 1;;; 1; 0; 0; 1])))

Evaluating the Results

Let's see the results. For open boundary conditions at the critical point $h=J$, we may compare to the exact solution.

using CairoMakie, Statistics, Random
Random.seed!(123) # for reproducibility
function E_critPoint_exact(L, h=1, periodic=false)
    (!periodic && h==1) || return NaN

    return 1 - csc(pi / (2 * (2 * L + 1)))
end

MaxProjection = 40
energies = getEnergies(Observer, MaxProjection)
tau = (0:MaxProjection-1) * dtau

let
    fig = Figure()
    ax = Axis(fig[1, 1], xlabel=L"$τ$ (imaginary time)", ylabel=L"Energy$$")

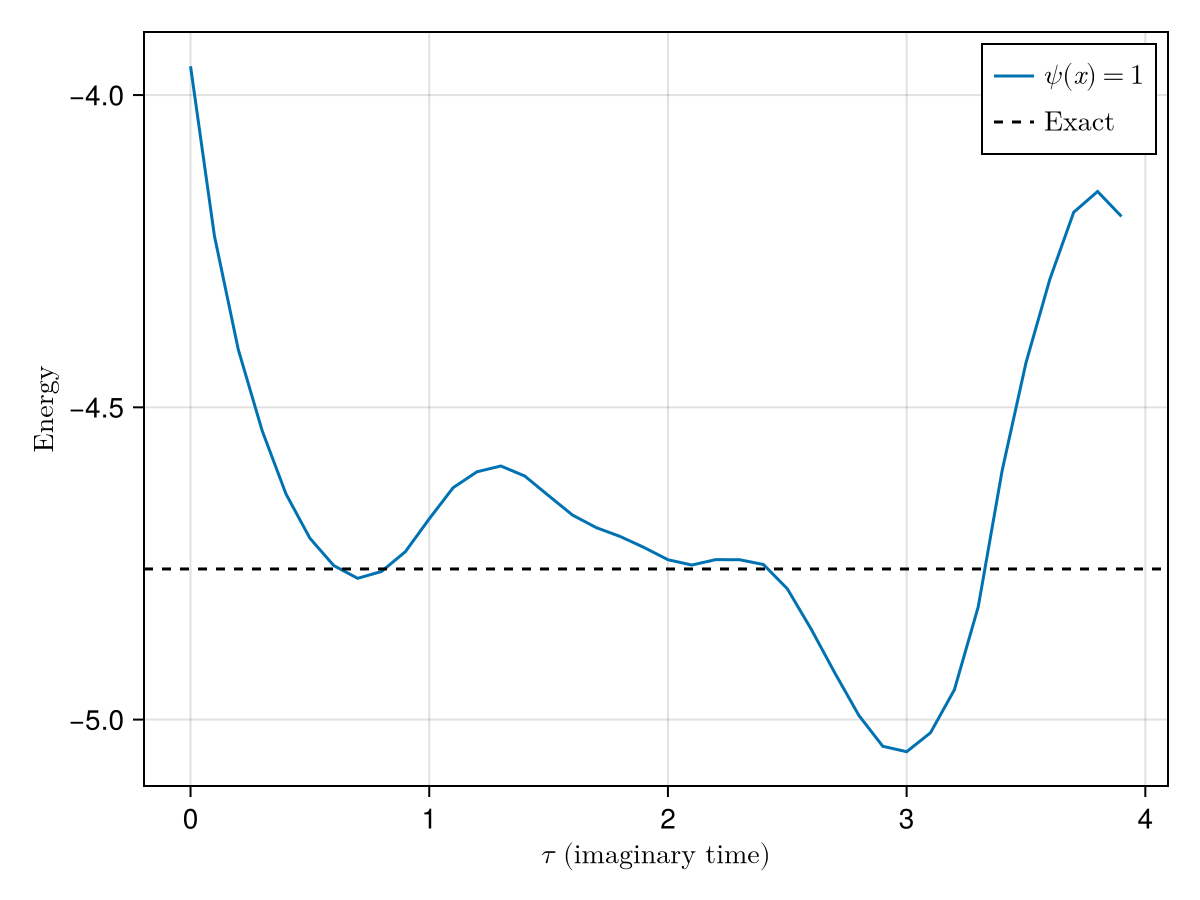

    lines!(ax, tau, energies, label=L"$\psi(x)=1$")

    hlines!(ax, E_critPoint_exact(lattice_size,h,periodic), color=:black, label=L"Exact$$", linestyle=:dash)

    axislegend(ax, position=:rt)
    fig
end

Run the GFMC simulation a few times (with different seeds) and see what happens:

• At $\tau=0$ (for a single walker!), we will always obtain the variational energy of the guiding wavefunction.
• The energy initially decreases with the number of projections.
• However, for larger $\tau$, the energy is strongly affected by statistical fluctuations. It may either increase or go below the exact energy.
• We may quantify this statistical error by looking at the standard deviation of the energy upon performing several runs (see below).
• Provided a large enough $\tau$, such that the imaginary time projection is converged, the energy will be within the statistical error of the exact energy.

Using Variational Wavefunctions

The issue of errorbars growing exponentially with $\tau$ can be significantly alleviated by using more Walkers, i.e. setting NWalkers = 10 in the example above, or by using a more sophisticated guiding wavefunction. For example, it is easy to implement a short ranged Jastrow wavefunction which correlates nearest neighbors spins.

function ShortRangeJastrow(x)
    res = 0.
    for i in eachindex(x)[1:end-1]
        res += 0.5x[i]*x[i+1]
    end
    return res
end
logψ = NaiveFunction(ShortRangeJastrow)
NWalkers = 10
P = ProblemEnsemble([GFMCProblem(startConfig, NWalkers, ContinuousTimePropagator(dtau); logψ, H, Hilbert) for i in 1:10])
Observers_jastrow = [ConfigObserver(startConfig, NSteps, NWalkers) for _ in 1:10]

runGFMC!(P, NoObserver(),200,logger=nothing) #equilibrate
runGFMC!(P, Observers_jastrow,NSteps,logger=nothing)

energies_jastrow = [getEnergies(Observer, MaxProjection) for Observer in Observers_jastrow]

let
    fig = Figure()
    ax = Axis(fig[1, 1], xlabel=L"$τ$ (imaginary time)", ylabel=L"Energy$$")

    lines!(ax, tau, energies, label=L"$\psi(x)=1,\ N_w=1$")

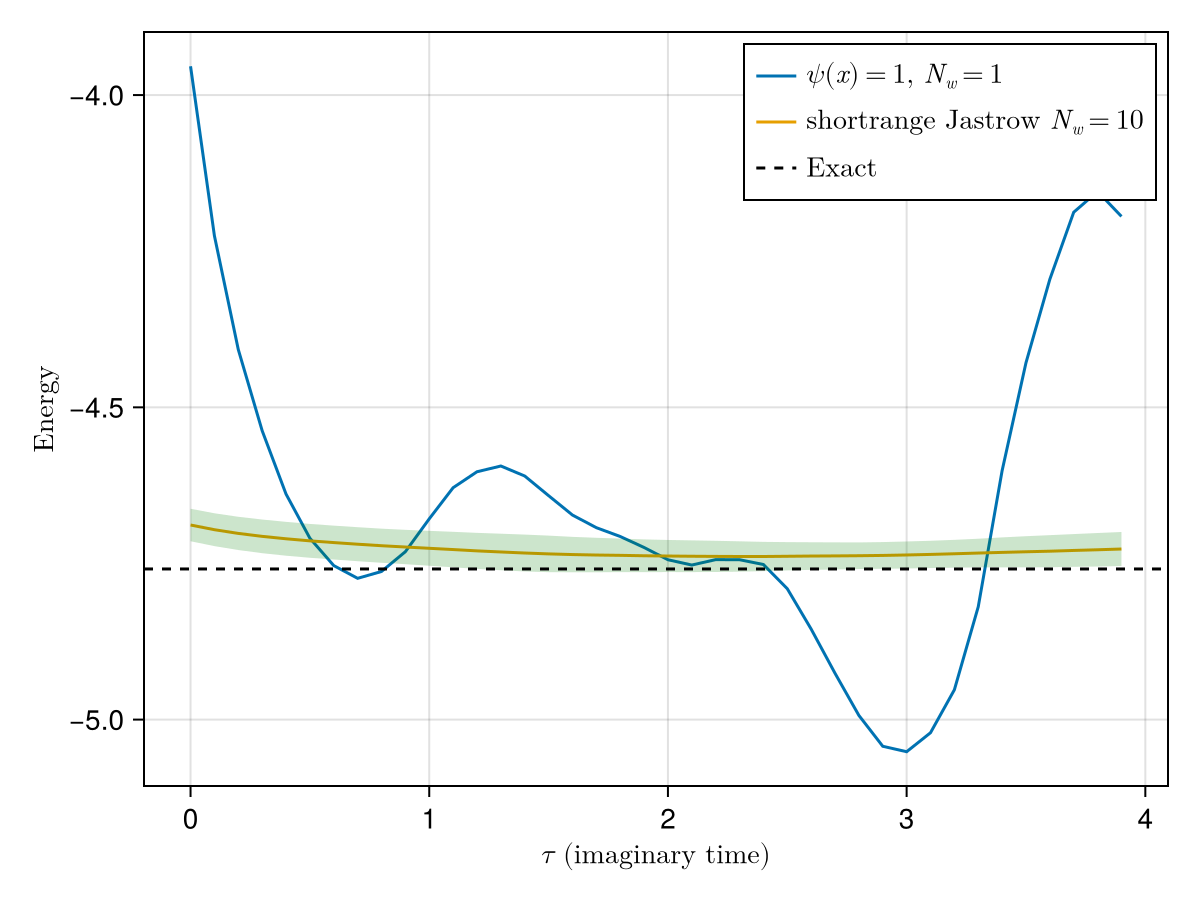

    lines!(ax, tau, mean(energies_jastrow), label=L"shortrange Jastrow $N_w=%$NWalkers$")
    band!(ax, tau, mean(energies_jastrow) - std(energies_jastrow), mean(energies_jastrow) + std(energies_jastrow), color=(:green, 0.2))

    hlines!(ax, E_critPoint_exact(lattice_size), color=:black, label=L"Exact$$", linestyle=:dash)

    axislegend(ax, position=:rt)
    fig
end

vij_jastrow = zeros(Float32,lattice_size,lattice_size)
for i in axes(vij_jastrow, 1)[1:end-1]
    vij_jastrow[i,i+1]=vij_jastrow[i+1,i] = 0.5
end

logψJastrow = Jastrow(
    zeros(Float32,lattice_size),
    vij_jastrow,
)

Observables diagonal in the computational basis

Observables which are diagonal in the computational basis (i.e. they can be expressed as a function of the occupation numbers) are simple to determine. Using the ConfigObserver, which records the configuration of the walkers at each step, we can compute them cheaply after the simulation. To do this, we only need to use the function getObs_diagonal. Let's consider the average occupation number as an example.

mProj = 40  # Number of projection steps
Observable = OccupationNumber(lattice_size)

n_avg = [stack(getObs_diagonal(O,Observable,1:mProj)) for O in Observers_jastrow]

n_avg_mean = mean(n_avg)
n_avg_std = std(n_avg)

let
    fig = Figure()

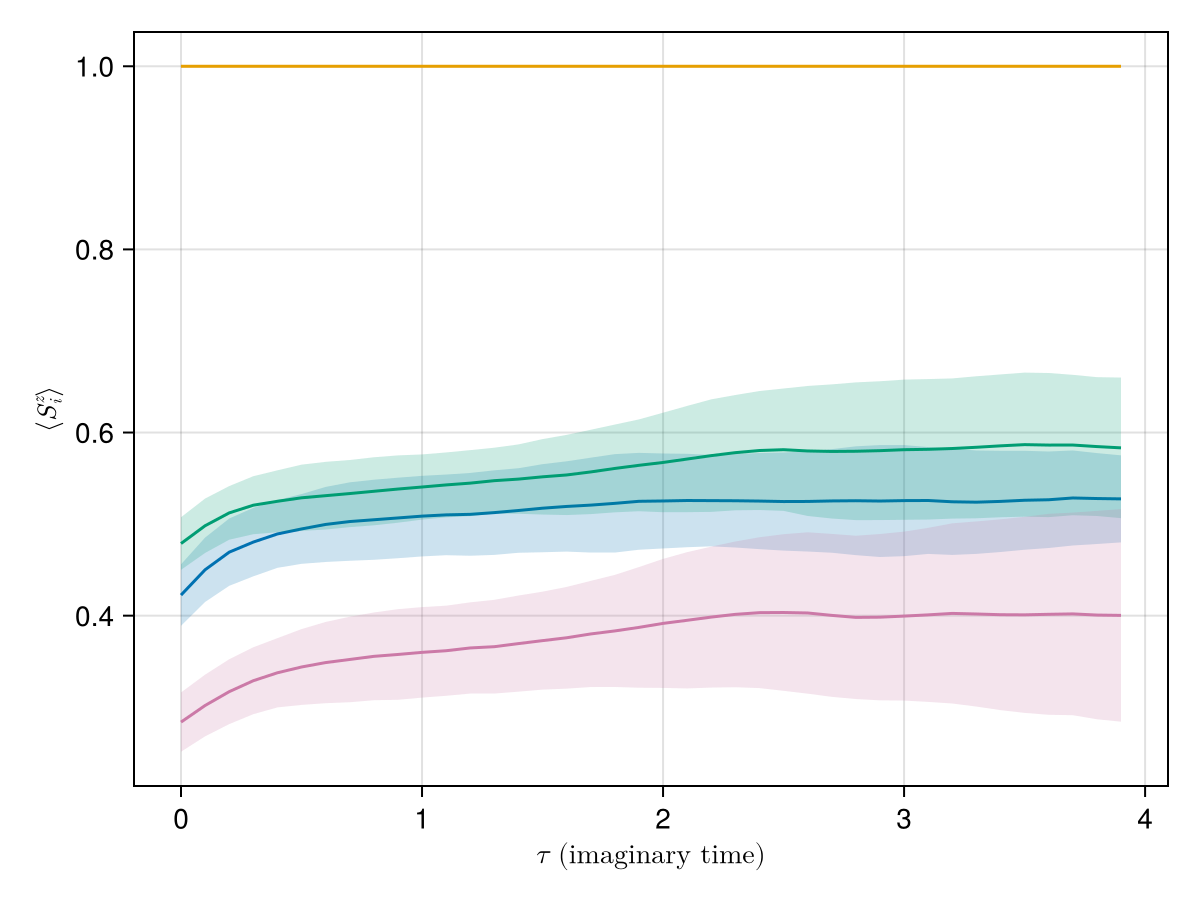

    ax = Axis(fig[1, 1], xlabel=L"$τ$ (imaginary time)", ylabel=L"$\langle S^z_i\rangle$")
    tau =( 0:mProj-1) * dtau
    for i in 1:lattice_size
        lines!(ax, tau, n_avg_mean[i,:])
        band!(ax, tau, n_avg_mean[i,:] - n_avg_std[i,:], n_avg_mean[i,:] + n_avg_std[i,:], alpha = 0.5)
    end
    fig
end

Here, OccupationNumber is a pre-defined observable. However, it is relatively simple to implement your own observables by defining a new subtype of AbstractObservable. As an example lets try to compute $\langle S^z_i S^z_j \rangle$ in a simple way.

struct SpinCorrelations{T<:Real} <: AbstractObservable
    ObservableBuffer::Matrix{T}
end
SpinCorrelations(Nsites) = SpinCorrelations(zeros(Nsites,Nsites))

Base.copy(O::SpinCorrelations) = SpinCorrelations(copy(O.ObservableBuffer))
GreenFunctionMonteCarlo.obs(O::SpinCorrelations) = O.ObservableBuffer
function (O::SpinCorrelations)(out,config)
    for i in axes(out,1)
        for j in axes(out,2)
            out[i,j] = σz(i,config) * σz(j,config)
        end
    end
    return out
end

Key here is the function (O::My_new_OccupationNumber)(out,config). Given a configuration config, it computes the estimate observable and stores it in a pre-allocated buffer out. Also note the defintion of GreenFunctionMonteCarlo.obs(O::My_new_OccupationNumber), which returns the buffer that is used to store the observable. Now we can use this observable in the same way as the OccupationNumber above:

Observable = SpinCorrelations(lattice_size)
Corrs = [stack(getObs_diagonal(O,Observable,1:mProj)) for O in Observers_jastrow]

Corr_mean = mean(Corrs)
Corr_std = std(Corrs)

let
    fig = Figure()
    ax = Axis(fig[1, 1], xlabel=L"$τ$ (imaginary time)", ylabel=L"$\langle S^z_i\rangle$")
    tau =( 0:mProj-1) * dtau

    i = 2
    for j in 1:lattice_size
        lines!(ax, tau, Corr_mean[i,j,:])
        band!(ax, tau, Corr_mean[i,j,:] - Corr_std[i,j,:], Corr_mean[i,j,:] + Corr_std[i,j,:], alpha = 0.5)
    end
    fig
end

Note that we left quite some room to improve performance here. For instance, we do not actually have to compute the full matrix of correlations, but only the upper triangle.
